Ablängen und Abisolieren
Zum Lesen der Artikelinformation auf das Bild klicken.

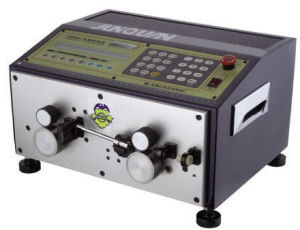

ZDBX-1
Product Info:
ZDBX-1 IS A KIND OF ECONONMICAL AND EFFICIENT MACHINE WITH THE EXQUISITE AND GOOD LOOKING BODY, THIS MACHINE CAN IMPROVE PROCESSING SPEED AND INCREASE THE WORK PRODUCTIVITY. MARKET MOREOVER,IT HAS A COMPETITVE PRICE IN MAKET.
Product Description
MODEL: ZDBX-1
MEASUREMENT: W360 × D288 × H200 mm
WEIGHT: 20 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 240 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #18-30
PROCESSING CAPACITY: L=100 mm, 85p cs/min
schliesen
ZDBX-2
Product Info:
PERCISE STEADY BODY; CONVENIENT AND EXPLICIT OPERATE TOUCH PANEL.
FULLY COMPUTERIZED WITH LCD -DISPLAY AND CAN STORE UP TO 248 INFORMATIONS . NEW IMPROVED
SAFETY FEATURES ENSURE "ZERO" WASTAGE , WHEN OPERATING UNDER INSTRUCTIONS. THE
MACHINE CAN STOP OPERATING AUTOMATICALLY WHEN IT REA-CHES THE END OF THE COIL WIRE.
Product Description
MODEL: ZDBX-2
MEASUREMENT: W430 × D340 × H250 mm
WEIGHT: 35 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 260 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #12-30
PROCESSING CAPACITY: L=100 mm, 90 pcs/min
schliesen

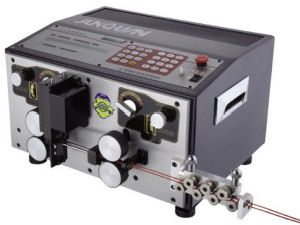

ZDBX-3
Product Info:
A GOOD CUTTING STRUCTURE APPLIES TWO BLADES RUNNING VERTICALLY. DIFFERENT PROCESSING MEANS CAN RUN VARIOUS RANGE WIRE, SUCH AS CUTTING, FULL-STRIPPING, SEMI-STRIPPING, MID-STRIPPPING CAPACITY IS HIGHER AND EQUAL 1.5 TIMES OF ZDBX-2.
Product Description
MODEL: ZDBX-3
MEASUREMENT: W430 × D340 × H260 mm
WEIGHT: 35 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 260 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #12-30
PROCESSING CAPACITY: L=100 mm, 150 pcs/min
schliesen

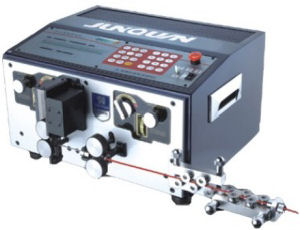

ZDBX-4 bis 10 mm²
Product Info:
THIS IS A FULLY-AUTOMATED MACHINE THAT PERFORMS HIGH-SPEED COMPUTERIZED WIRE CUTTING
AND STRIPPING ON BOTH ENDS.
LCD DISPLAY OF FULL PICTURE,FULL SCREEN OPERATIONS DISPLAY,CLEAR AND USER FRIENDLY.
PROVIDING BROADER RANGE OF DESIGN AND PRODUCTION,APPLICABLE FOR WIRE MATERIAL FROM
#8AWG TO #28AWG.
FOR CHANGING WIRE MATERIAL SPECIFICATION,ONLY CHANGING WIRE MATERIAL SPECIFICAION FOR
PRODUCTION.DESIGNED WITH MEMORY FUNCTION FOR FASTER AND MORE CONVENIENT PRODU-CTION
CONFIGURATION.
Product Description:
MODEL: ZDBX-4
MEASUREMENT: W430 × D360 × H268 mm
WEIGHT: 37 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #8-28
schliesen

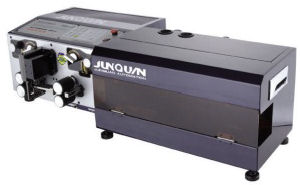

ZDBX-5 with big wire feeder foreign manufacturer
Product Info:
WITH BLADES AND A PAIR OF DISPEACABLE ROLLERS, THE MACHINE WILL BRING YOU A SUCCESSFUL RESULT, IMPROVED SAFETY FEATURES CONTINUOUS PRODUCTION PROCESS WITH ZERO DEFECTS
Product Description:
MODEL: ZDBX-5
MEASUREMENT: W430 × D360 × H265 mm
WEIGHT: 38 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: 25 mm
PROCESSING CAPACITY: L=100 mm, 48 pcs/min
schliesen

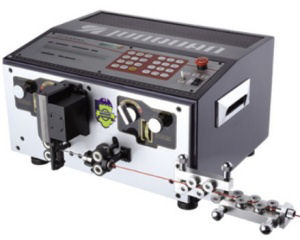

ZDBX 6 ab 19 mm Ges. Länge im Standardmodus
Product Info:
Conputerized cutting and stripping machine
Product Description:
MODEL: ZDBX-6
MEASUREMENT: W430 × D340 × H260 mm
WEIGHT: 35kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #20-36
PROCESSING CAPACITY: L=100 mm, 90 pcs/min
schliesen

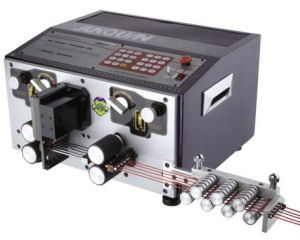

ZDBX-7
Product Info
THIS MACHINE CAN PROCESS 5 WIRES AT ONE TIME , WHICH GREAT-LY
INCREASES THE PRODUCTION CAPACITY .
IT IS DESIGNED TO ENSURE PRECISION CUTTING AND HAS IMPROV-ED SAFETY
FEATUERS IN SPRING-LOADED ON/OFF SWITCH
Product Description
MODEL: ZDBX-7
MEASUREMENT: W430 × D360 × H268 mm
WEIGHT: 38 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #18-30
PROCESSING CAPACITY: L=100 mm, 300 pcs/min
schliesen

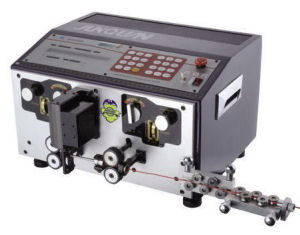

ZDBX-8 mit Spulenabroller, auch mehrstufige Bearbeitung möglich, - Fremdprodukt
Product Info:
MOST APPROPRIATE FOR SPECIAL WIRE LIKE BATTERY CABLES OR POWER CORDS. BY USING THIS MACHINE,AUTOMATION OF TRIPLE STEP. PROCESSING-LENGTH MEASUREMENT,CUTTING AND STRIPPING OF SHIELD OR COAXIAL CABLE,WHICH USED TO BE POSSIBLE ONLY BY A SEMI-AUTOMATIC OR MANUAL OPERATION HAS NOW BEEN MATERIALIZED.
DESIGNED TO ALLOW EASY PARTS ASSEMBLY.PROGRAMMED WITH A VARIETY OF PROCESSING PROGRAMS,NO DAMAGES GRIPPING OUTER INSULATION TWO LEVEL STRIPPING FOR MULTI CORE CABLE
Product Description
MODEL: ZDBX-8
MEASUREMENT: W430 × D340 × H250 mm
WEIGHT: 35 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #8-26
BVVB: 2X1.5 MM
STRIPPING JACKET LENGTH: 70 MM
INSULATION THICKNESS: 0.7 MM
JACKET THICKNESS: 0.9 MM
schliesen

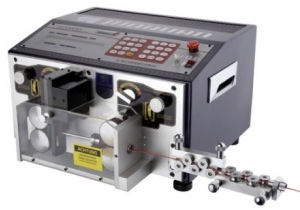

ZDBX-9 die besonders schnelle
Product Info:
THE PRIMARY ADVANTAGE OF ZDBX-9 IS ITS ESPECIALLY HIGH SPEED , WHICH IS
A NEWLY DESIGNED MACHINE WITH THE INTERNATIONAL ADVANCED LEVEL .
A NEWLY DESIGNED BLADE BLOCK IS EMPLOYED TO INSURE THE QUALITY AND
NEAT FINISH. THE BLADES ARE MADE OF ULTRA FINE -GRAINED ALLOY
TIMULTANESOUSLY .
Product Description:
MODEL: ZDBX-9
MEASUREMENT: W430 × D340 × H260 mm
WEIGHT: 35 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 260 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #16-30
PROCESSING CAPACITY: L=100 mm, 120 pcs/min
schliesen

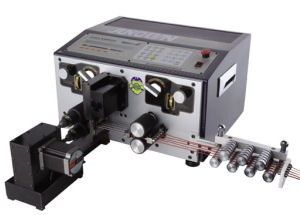

ZDBX-10 auch zum Verdrillen geeignet
Product Info:
LATEST WIRE TWISTING TECHNOLOGY HAS BEEN BUILT INTO A COMPACT BODY SUITABLE FOR USE WITH ZDBX-7. ADJUESTMENT OF THE TWISTING FORCE , SWITCHING OF NORMAL(Z TWISTING) AND REVERSE ( S TWISTING ) AND ADJUESTMENT OF TWISTING START POSITION CAN BE MADE BY ONE-TOUCH COMMAND OPERATION . FUTHERMOER IT CAN SMOOTHLY CATCH UP WITH CHANGE OF WIRE THICKNESS AND/OR FEEDING SPEED BY THE COMPUTER CONTROL SYSTEM . IT IS A TRULY SPEEDY , QUIET AND PRECISE TWISTING UNIT.
Product Description:
MODEL: ZDBX-10
MEASUREMENT: W430 × D360 × H268 mm
WEIGHT: 39kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #18-30
PROCESSING CAPACITY: L=100 mm, 135 pcs/min
schliesen

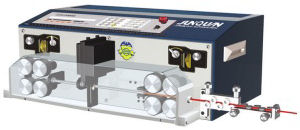

ZDBX-11 Dual 4WD Wire Stripping Machine, Schrittmotor
Product Info
THIS MACHINE REALIZED A VERSATILE PROCESSING , JUNQUAN'S UNIQUE IDEA AND TECHNOLOGY HAVE DEVELOPED A FURTHER UPGRADED MACHINE , WHICH WITH A DUAL 4WD POWERFUL STRIPPING UNIT , WHICH IS A SURPRISE IN CONVENTIONNAL BENCH-TOP MACHINES . THE MANUFACTURER THAT IS ALWAYS PURSUING THE BEST .IT CAN PROCESS A DIFFICULT-TO-STRIP WIRE WITH TIGHT INSULATION COVERING UP TO A STRIP LENGTH OF 200mm BY REPEATING A SHORT LENGTH STRIPPING FROM THE FRONT OR REAR END OF WIRE SEVERAL TIMES.
Product Description:
MODEL: ZDBX-11
MEASUREMENT: W736 × D425 × H243 mm
WEIGHT: 37kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 246 W
STRIPPING LENGTH: 0.1-- 200 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #8-28
schliesen

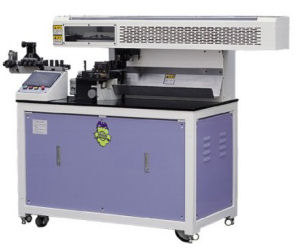

ZDBX-12 für Extremleitungen – Arbeitsablauf "ziehend" nicht über Transportrollen schiebend!

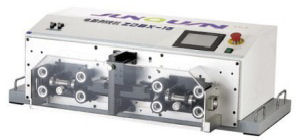

ZDBX-16 Computerized Cutting and Stripping Machine, Servo Antrieb
Product Info:
WITH DUAL 4WD POWERFUL STRIPPING UNIT,ZDBX-16CAN PROCESS WIRE OR CABLE WITHIN 80 SQ.mm(F20mm)
Product Description:
MODEL: ZDBX-16
MEASUREMENT: W1026 × D530 × H325 mm
WEIGHT: 90 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: np400 W; mp2200 W
STRIP LENGTH: NO.1:1-255 mm
NO.2:0.1-140 mm
CUTTING LENGTH: 0,1-99999 mm
WIRE TYPE: VSF,IV,KV,fiberglass wire VSF,IV,KV
WIRE SIZE: 0.5sq. mm-80sq. mm deperds to wire type
MAX WIRE OD: 20 mm
schliesen

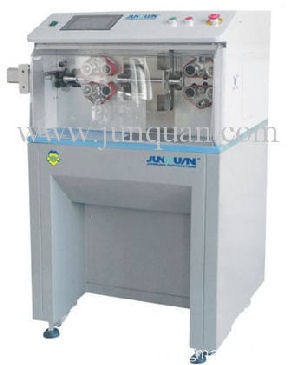

ZDBX-18 Computerized Wire Cutting And Stripping Machine
Product Description:
ZDBX-18 wire cutting and stripping machine
1) with advanced automatic dual blades design of longitudinal movement.
2) Transverse profile knife unique, perfect solution intermediate strip.
3) ZDBX Automatic cutting and stripping machine incorporates the most advanced technology.
4) Power, performance and a new type of sensors are the three key features of the fully automatic ZDBX cutting and stripping machine.
5) Simple, intuitive controls allow these machines to be used efficiently in daily operation
6) The machine can stop operating automatically if it reaches the end of the coil wire.
7) One-year warranty, full-life service
8) CE Approved
Basic Info.:
Model NO.: ZDBX-18
Automatic Grade: Automatic
Certification: CE
Export Markets: Global
MEASUREMENT: W820 × D1100 × H1290 mm
WEIGHT: 90kg
POWER SUPPLY: AC 220V
POWER CONSUMPTION: NP 100 W / MP2200 W
STRIP LENGTH: NO. 1: 0~9999 mm
NO. 2: 0~150 mm
CUTTING LENGTH: ± (0.2+0.002× L) mm
WIRE TYPE: VSF,IV,KV,fiberglass wire VSF,IV,KV
WIRE SIZE: 0.5sq mm~100sq mm (depends to wire type)
schliesen

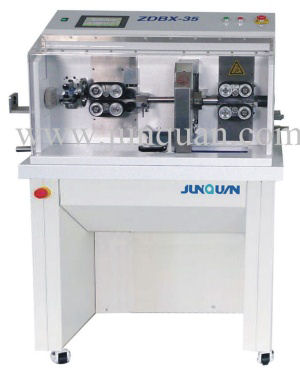

ZDBX-35 wire cutting and stripping machine
in Testphase
Product Info:
Basic Info.:
Model NO.: ZDBX-35
Export Markets: Global Additional Info.
Trademark: JUNQUAN
Packing: Fibreboard Box
Origin: Wenzhou
HS Code: 8537101990
Product Description
ZDBX-35 wire cutting and stripping machine
1) With advanced automatic dual blades design of longitudinal movement.
2) Transverse profile knife unique, perfect solution intermediate strip.
3) ZDBX Automatic cutting and stripping machine incorporates the most advanced technology.
4) Power, performance and a new type of sensors are the three key features of the fully automatic ZDBX cutting and stripping machine.
5) Simple, intuitive controls allow these machines to be used efficiently in daily operation
6) The machine can stop operating automatically if it reaches the end of the coil wire.
7) One-year warranty, full-life service
8) CE Approved
MODEL: ZDBX-35
MEASUREMENT: W660 × D560 × H390 mm
WEIGHT: 90kg
POWER SUPPLY: AC 220V
POWER CONSUMPTION: NP 400 W / MP 2200 W
STRIP LENGTH: NO.1: 0.1~290 mm
NO.2: 0.1~150 mm
CUTTING LENGTH: ± (0.2+0.002× L) mm
WIRE TYPE: VSF,IV,KV,fiberglass wire VSF,IV,KV
WIRE SIZE: 2.5 sq~120 sq(depends to wire type)
MAX WIRE OD 35 mm
schliesen

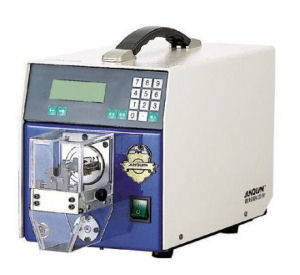

ZDBX-36R Micro cable stripper
Product Info:
HIGHLY PRECISE AND RELIABLE PROCESSING OF COAXIAL AND SINGLE CABLES
MEMORY FOR 99 DIFFERENT WIRE TYPES AND WITH A ROTHTIONG STRIPPING HEAD.
Product Description:
MODEL: ZDBX-36 R
DIMENSIONS: W185 × D435 × H230 mm
WEIGHT: 15 kg
WORKABLE CABLE: MICRO-COAXIAL/OTHER SINGLE
STRIP LENGTH: 0.1 mm-MAX30 mm
STRIPPING LENGTH SCALE: 0.01 mm
CABLE DIAMETER: F0.3 mm - MAXF6.99 mm
CUT-DEPTH DIVISION VALUE: 0.01 mm
MAX CUTTING LAYER: MAX.6STEPS/1 CYCLE
schliesen

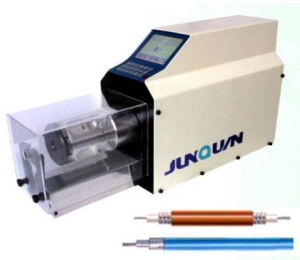

ZDBX-39R Programmable Coaxial Cable Stripping Machine
Product Info:
THE ZDBX-39R IS A SEMI-AUTOMATIC,PROGRAMMABLE STRIPPING MACHINE DESIGNED TO PERFORM BOTH SINGLE AND MULTIPLE STAGE STRIPS.ITS PROCESSING CAPCABLITIES MAKE THE ZDBX-39R A PERFECT MATCH FOR A WIDE RANGE OF WIRES AND CABLELS SUCH AS COAXIAL AND MULTI-CONDUCTOR CABLES-EVEN WITH VERY THIN AND TOUGH OR SLIGHTLY OUT-OF-ROUND INSULATIONS.
Product Description:
MODEL: ZDBX-39 R
DIMENSIONS: L705 × W196 × H356 mm
POWER SUPPLY: AC 220 V; 50-60 HZ
MAX.STRIPPING STEPS: MAX.9STEPS/1CYCLE
STRIPPING LENGTH INCREMENTS: 0.01 mm(0.001')
MAX.STRIPPING LENGTH: 95 mm
STRIPPING DIAMETER INCREMENTS: 0.01 mm(0.001')
MAX.CABLE DIAMETER(O.D.): 16 mm
schliesen

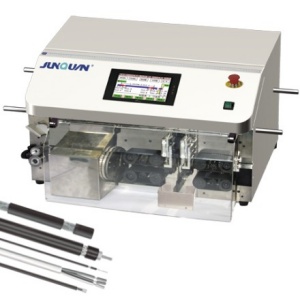

ZDBX-65A AUTOMATIC COAXIAL CABLE CUTTING-STRIPPING MACHINE
Product Info:
THIS MACHINE CAN STRIPPING AND CUTTING THE COAXIAL CABLES.THE UNIQUE ROTARY INCISION HEAD DESIGN COMBINES ROTARY INCISION BLADES WITH A UNIVERSAL CENTERING SYSTEM.AS A RESULT,BLADE CHANGES ON THE INCISION HEAD ARE NOT REQUIRED,ENABLING EVEN FASTER CABLE PROCESSING AND SHORT CHANGEOVER TIMES.TOUCH SCREEN CONTROL SYSTEM.PRECISION-BUILT PARTS GUARANTEE HIGHEST QUALITY AND REPEATABILITY.
Product Description:
MODEL: ZDBX-65 A
DIMENSIONS: W660 × D560 × H390 mm
WEIGHT: 80 KG
POWER SUPPLY: AC 220 V; 50-60 HZ
MAX.PROGRAMMABLE TOTAL LENGTH: 9999.9 m
WIRE SIZE RANGE: MULTI-CORE CABLE:0.03-25 mm2(AWG#4-32)
SINGLE-CORE CABLE:UP TO 6 mm2(AWG#10)
MAX.CABLE DIAMETER(O.D.): 12 mm
schliesen

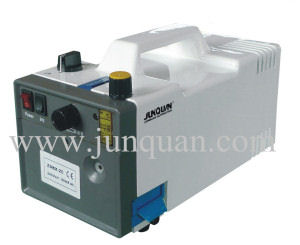

ZDBX-2010 Electrically Driven STRIPPING MACHINE
Product Info:
ZDBX-2010 Portable stripper:
1) This machine is adopted with most advanced rotary blades, very light and portable.
2) Highly portable unit for the precise stripping of discrete wires and small multi-conductor cable.
3) Production capacity varies depends on the type of production
4) One-year warranty, full-life service
5) CE Approved
Bitte beachten Sie weitere Neuentwicklungen in den Katalogen ZDBX 1015 und ZDBX 1025
Product Description:
MODEL: ZDBX-2010
Measurment: W340 × D150 × H170 mm
WEIGHT: 6,7 kg
POWER SUPPLY: AC 220 V
Stripping length: 1.5-10 mm
Wire type: PVC, Teflon, Glass wire
Wire size: AWG#16-30
schliesen
