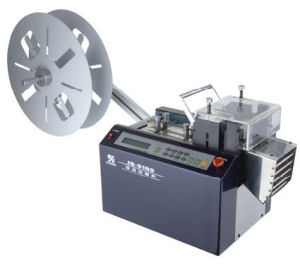

JQ-6100 DIGITAL CUTTING MACHINE
Product Info:
WITH THE FASTE ST SPEED AND PREICE CONTROL,THE JQ-6100 IS ABLE TO CUT VARIOUS MATERIAL
SUCH AS VINYL,HOSE,SHRINK TUBE,WIRE,FILM COPER/TINPLATE,ETC.
APPLICABLE WITH RECEIVING THE OUTER SIGNAL.
VARIOUS VARNING MESSAGES AND ALARM FUNCTIONS.
Product Description:
MODEL: JQ-6100
MEASUREMENT: W350 × D250 × H320 mm
WEIGHT: 25 kg
POWER SUPPLY: AC 220 V
MAX CUTTING WIDTH: 100 MM
CUTTING LENGTH: 0.1 MM - 99999 MM
SPEED: L=100 MM, 100 PCS/MIN
schliesen

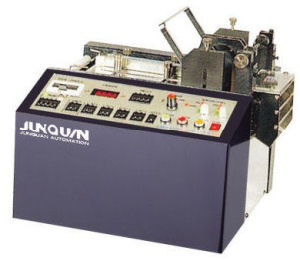

JQ-6900 CARD CABLE CUTTING MACHINE
Product Info:
DELECTS CUTTING POINT AND CONTROLS THE SPEED OF FEEDING;
WITH THE USE OF 2 LEVE SENSORS;
ADJUSTS CUTTING POINT WITH THE USE OF MANUAL OR AUTO MODE.
Product Description
MODEL: JQ-6900
MEASUREMENT: W395 × D330 × H335 MM
WEIGHT: 21 kg
POWER SUPPLY: AC 220 V
MAX CUTTING WIDTH: 100 MM
schliesen

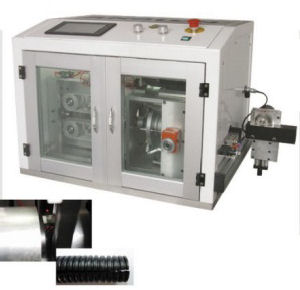

ZDQG-6600 CORRUGATED TUBING DUTTING SYSTEM
Wellrohr Schneiden
Product Info:
JUNQUAN AUTOMATION SUCCESSFULLY DEVELOPED THE CORRUGATE TUBE CUTTERS OF THE ZDQG-6600SERIES.WITH THE PERFECT COORDINATION OF A POWERFUL PULLING DEVICE A PRECISE INFRARED DELECTION AND A ROTHING CUTTING HEAD,IT IS POSSIBLE TO CREATE A BURR FREE CUT ON THE WAVE MOUNTAIN.CLOSED CORRUGATED TUBES,WIDE OF ULTRA THIN CAN BE PROCESSED BY USING DIFFERENT BLADE SETS.WITH AN OPIONAL SLITTING UNIT II IS POSSIBLE TO OPEN THE TUBE AFTER THE CUTTING OPERATION.
Product Description:
MODEL: ZDQG-6600
DIMENSIONS: L700 × W550 × H520 mm
WEIGHT: 90 kg
POWER SUPPLY: AC 220 V / 60 HZ
AIR REQUIREMENTS: 5 BAR
TRANSPORT SPEED: UP TO 50 M/MINUTE IN 10 INCREMENTS
MAX.PROGRAMMABLE TOTAL LENGTH: 9999.9 m
CUTTING POSITION: ON THE PEAK OF THE TUBING
CORRUGATED TUBING DIAMETER: F7-32 mm
schliesen
