Kabel Ablänge- Abmantel- Abisolier- Maschinen - auch mehrstufige Bearbeitung möglich
Zum Lesen der Artikelinformation auf das Bild klicken.

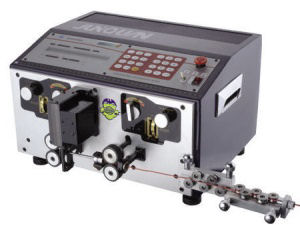

ZDBX-8 mit Spulenabroller - Fremdprodukt
Product Info:
MOST APPROPRIATE FOR SPECIAL WIRE LIKE BATTERY CABLES OR POWER CORDS. BY USING THIS MACHINE,AUTOMATION OF TRIPLE STEP. PROCESSING-LENGTH MEASUREMENT,CUTTING AND STRIPPING OF SHIELD OR COAXIAL CABLE,WHICH USED TO BE POSSIBLE ONLY BY A SEMI-AUTOMATIC OR MANUAL OPERATION HAS NOW BEEN MATERIALIZED.
DESIGNED TO ALLOW EASY PARTS ASSEMBLY.PROGRAMMED WITH A VARIETY OF PROCESSING PROGRAMS,NO DAMAGES GRIPPING OUTER INSULATION TWO LEVEL STRIPPING FOR MULTI CORE CABLE
Product Description
MODEL: ZDBX-8
MEASUREMENT: W430 × D340 × H250 mm
WEIGHT: 35 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 300 W
STRIPPING LENGTH: 0.1-- 30 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #8-26
BVVB: 2X1.5 MM
STRIPPING JACKET LENGTH: 70 MM
INSULATION THICKNESS: 0.7 MM
JACKET THICKNESS: 0.9 MM
schliesen
ZDBX-11
Product Info:
THIS MACHINE REALIZED A VERSATILE PROCESSING , JUNQUAN'S UNIQUE IDEA AND TECHNOLOGY HAVE DEVELOPED A FURTHER UPGRADED MACHINE , WHICH WITH A DUAL 4WD POWERFUL STRIPPING UNIT , WHICH IS A SURPRISE IN CONVENTIONNAL BENCH-TOP MACHINES . THE MANUFACTURER THAT IS ALWAYS PURSUING THE BEST .IT CAN PROCESS A DIFFICULT-TO-STRIP WIRE WITH TIGHT INSULATION COVERING UP TO A STRIP LENGTH OF 200mm BY REPEATING A SHORT LENGTH STRIPPING FROM THE FRONT OR REAR END OF WIRE SEVERAL TIMES.
Product Description
MODEL: ZDBX-11
MEASUREMENT: W736 × D425 × H243 mm
WEIGHT: 37 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 246 W
STRIPPING LENGTH: 0.1-- 200 mm
CUTTING LENGTH: 0.1-- 99999 mm
CUTTING TOLERANCES: (0.2 ± 0.002 L) mm
WIRE TYPE: PVC, Teflon, Glass Wire
WIRE SIZE: AWG #8-28
schliesen
ZDBX-16 Computerized Cutting & Stripping Machine
Product Info:
WITH DUAL 4WD POWERFUL STRIPPING UNIT,ZDBX-16CAN PROCESS WIRE OR CABLE WITHIN 80 SQ.mm(F20mm)
Product Description:
MODEL: ZDBX-16
MEASUREMENT: W1026 × D530 × H325 mm
WEIGHT: 90 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: np 400 W - mp 2200 W
STRIP LENGTH: NO.1:1-255 mm
NO.2:0.1-140mm
CUTTING LENGTH: 0,1-99999 mm
WIRE TYPE: VSF, IV, KV, fiberglass wire VSF, IV, KV
WIRE SIZE: 0.5sq. mm-80sq. mm deperds to wire type
MAX WIRE OD: 20 mm
schliesen
ZDBX-18 Computerized Wire Cutting And Stripping Machine
Product Info:
ZDBX-18 wire cutting and stripping machine
1) with advanced automatic dual blades design of longitudinal movement.
2) Transverse profile knife unique, perfect solution intermediate strip.
3) ZDBX Automatic cutting and stripping machine incorporates the most advanced technology.
4) Power, performance and a new type of sensors are the three key features of the fully automatic ZDBX cutting and stripping machine.
5) Simple, intuitive controls allow these machines to be used efficiently in daily operation
6) The machine can stop operating automatically if it reaches the end of the coil wire.
7) One-year warranty, full-life service
8) CE Approved
Production capacity varies depends on the type of production.
Product Description:
MODEL: ZDBX-18
MEASUREMENT: W82 × D110 × H129 cm
WEIGHT: 90 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: NP 100 W - MP 2200 W
STRIP LENGTH: NO. 1: 0~9999 mm
NO. 2: 0~150 mm
CUTTING LENGTH: ± (0.2+0.002× L) mm
WIRE TYPE: VSF, IV, KV, fiberglass wire VSF, IV, KV
WIRE SIZE: 0.5sq mm~100sq mm (depends to wire type)
schliesen
ZDBX-35
Product Info:
Product Description:
ZDBX-35 wire cutting and stripping machine
1) With advanced automatic dual blades design of longitudinal movement.
2) Transverse profile knife unique, perfect solution intermediate strip.
3) ZDBX Automatic cutting and stripping machine incorporates the most advanced technology.
4) Power, performance and a new type of sensors are the three key features of the fully automatic ZDBX cutting and stripping machine.
5) Simple, intuitive controls allow these machines to be used efficiently in daily operation
6) The machine can stop operating automatically if it reaches the end of the coil wire.
7) One-year warranty, full-life service
8) CE Approved
Production capacity varies depends on the type of production.
MODEL: ZDBX-35
MEASUREMENT: W660 × D560 × H390 mm
WEIGHT: 90 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: NP 400 W - MP 2200 W
STRIP LENGTH: NO. 1: 0.1~290 mm
NO. 2: 0.1~150 mm
CUTTING LENGTH: ± (0.2+0.002× L) mm
WIRE TYPE: VSF, IV, KV, fiberglass wire VSF, IV, KV
WIRE SIZE: 2.5 sq~120 sq (depends to wire type)
MAX WIRE OD: 35 mm
