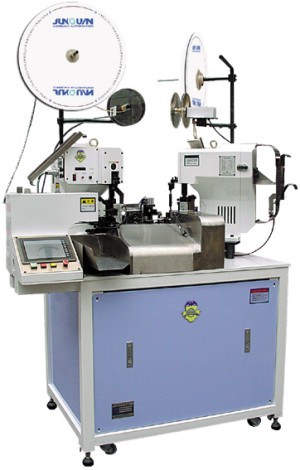

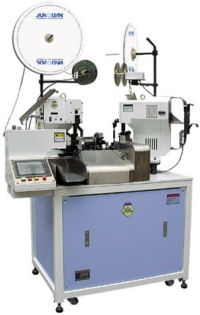

JQ-1 full automatic terminal crimping machine (both ends)
Product Info:
COMPACT AND HIGH SPPED FULL AUTOMATIC TERMINAL CRIMPING MACHINE.HIGH PRODUCTIVITY AND
REIABILITY USING A POSITIONING UNIT BY SERVO MOTO AND DOUBLE DRIVE WIRE FEED UNIT.THE OUTS
TANDING PERFORMANCE OF THE MACHINE CAN BE GUARANTEED BY ITS;
MODULARIZED EDSIGN,PRORAM LOGIC CONTROL;
STRUCTURIZED SOFTWARE DESIGN TECHNOLOGY;
ADVANCED DATA-EXCHANGE SCHEME PRE-FEEDER NOT REQUIRED.
Product Description
MODEL: JQ-1
Measurment: W130 × D87 × H145 cm
WEIGHT: 500 kg
POWER SUPPLY: AC 220 V
POWER CONSUMPTION: 2.0 KW
Stripping length: 0.1-- 30 mm
CUTTING LENGTH: 30-- 99999 mm
CUTTING TOLERANCES: L=100 mm(0.5+L×0.002) L> 100 mm ±(1.0+L×0.002)
Wire type: PVC, Teflon, Glass wire
Wire size: AWG #18-32
PROCESSING CAPACITY: L=100 mm, 0.8 second/pc
schliesen

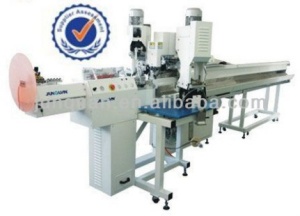

JQ-3 Fully Automatic Crimp Machine With Seal Function
Product Info:
1. Ultra short converslon times, additional applications;
2. With its third processing station and state of the art control software, you are assured maximum flexibility and
an even more efficient way of meeting your wire processing needs.
Product Description
Model: JQ-3
Measurment: W130 × D148 × H145 cm
WEIGHT: 500 kg
Power supply: AC 220 V
Compressed air: 0.5 mpa (5 kgf/cm)
Press capacity: 19600 n(2.0ton) × 2sets low noise type
Wire size: 0.13-5.26 mm² (UL1007AWG#10-26)
Capacity: 0.85 sec/PCS (in case of min wire length)
Max cutting length: 60--65000 mm
Cutting accuracy: L= 100 mm± (0.5+L × 0.002) L> 100 mm± (1.0+L× 0.002)
Stripping length: No. 1: 0.1-15.0 mm (28mm) No. 2: 1.0-15.0 mm
Cutting depth: 2 mm 100 steps(1step=0.02 mm)
Detector: Puessur down. crimp-mis. strip error Wire Presence Wire Load Wire Parameter Error Etc.
schliesen

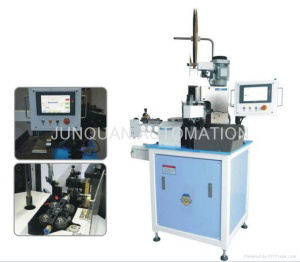

JQ-5 Full Automatic Terminal Crimping Machine
Product Info:
1) Ultra short conversion times, additional applications;
2) with its third processing station and state of the art control software, you are assured maximum flexibility and
an even more efficient way of meeting your wire processing needs.
3) Fully automatic swivel arm crimping machines for high speed wire processing
4) High productivity, short changeover times, user-friendly operation and a wide range of processing capabilities
from cutting, stripping to crimping Two -ends stripping, and one end crimping
5) one-year warranty, full-life service
6) CE Approved
Product Description
Model: JQ-5
Measurment: W120 × D80 × H190 cm
WEIGHT: 400 kg
Power supply: AC 220 V
Compressed air: 3 m³/h
Pneumatic connection: 5~6 bar (73-87psi)
Press capacity: 19600 n(2.0ton) × 1set
Wire size: 0.13-1.5 mm² (AWG#16-26)
Wire draw-in speed: 3 m/s
Max cutting length: 40--65000 mm
Cutting accuracy: L= 100 mm± (0.5+L × 0.002) L> 100mm± (1.0+L× 0.002)
Stripping length: No. 1: 0.1-15.0 mm No. 2: 1.0-15.0 mm
