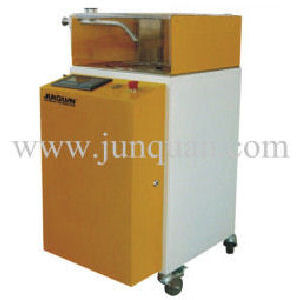

Model: BS-40
Dimensions: 680 X 720 X 1140 mm
Weight: 105 kg
Powr supply: 220 V AC / 10 A / 50 HZ
Pneumatic supply: max 6 bar (90 psl)
Wire Diameter: max 15 mm Ø
Min wire length: 1800 mm
Connecter: I/O encoder or MSINC of megastrip 9600
Reel inner diameter: 100 - 330 mm
Reel outter diameter: max 330 mm
Max wire reel weight: 40 ks
Max wire reel speed: 1.3 - 4.3 m/s According to wire diameter

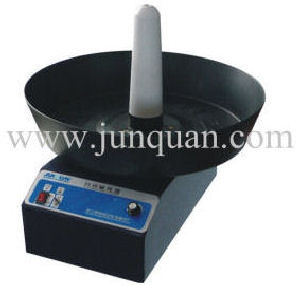

An automatic wire feeder(PF-2) unwinds only required length of wire by the action of a rotation sensor. The built-in
computer automatically controls the speed and the number of rotation in accordance with the speed of feeding.

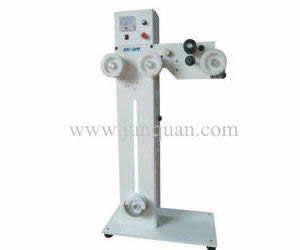

PF-3 Automatic wire feeder is provided with AC motor which renders stable delivery of wire to the cutter. This
feeder is further outlined with sensor and warn devices. In case of short supply of wire, absence of terminal, over feed
of wire, and feed speed out of control, it sensed and transmits the signal to the wire cutting machine and crimping
machine to stop their operation. It is suitable to load shaft would wire roll or ball reeled wire roll.

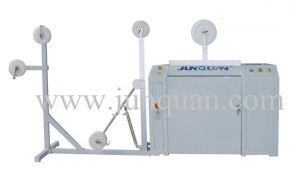

Model: PF-6K
Dimensions: L=140 W=110 H=142,5 cm
Weight: Appox. 450 K GS
Power supply: 380 V 50/60 HZ
Power: 2.2 KW
Max. diameter of spool: 80 cm
Max. width of spool: 60 cm
Max. weigh of spool: 300 KG S
Revolution: Max. 70 RPM
Pneumatic: 4-6 BAR

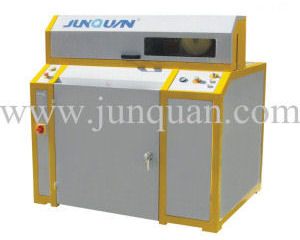

Model: PF-6S
Dimensions: 155 X 105 X 130 cm
Weight: 150 kg
Power supply: 220 V AC/10 A 50 HZ
Reel Diameter: nominal 800 mmØ
Reel weight: 250 kg
Max weight which can be lifted by LF80/LF80HS: 250 ks
Minimum reel width which can be processed measured from flange to flange with standard equipment: 450 mm
Max reel width measured from flange to flange: 565 mm
Reel Minimum dimensions (using the kit): reel Ø 400 mm width 110 mm
Cable diameter: 14 mm round cable, 12 mm width flat cable
Pneumatic supply: max 7 bar

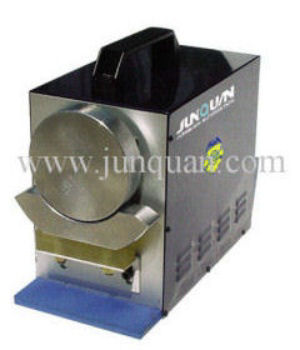

STM-1 Semi-stripping twisting unit:
1. Wires can be kinked only after the half-stripping
2. Strong kinking force; Processing 2-5 wires at the same time
3. Applicable to power line, electoronic wire & multi-core line
4. Power: AC220V 90W

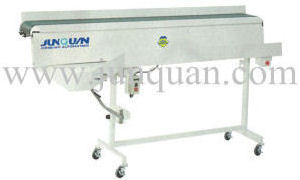

Wire Collector-Belt Chute (BS-16)

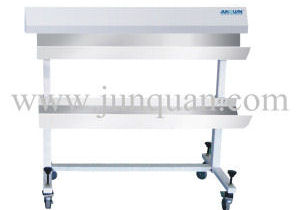

Wire Collector-Belt Chute (BS-35)
Automatic Coiling Machine (BS-40)
Automatic Wire Feeder (PF-2)

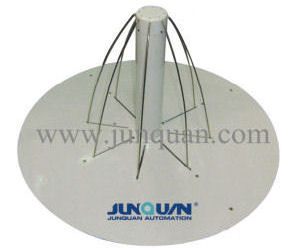

Feeding Plate (PF-2A)

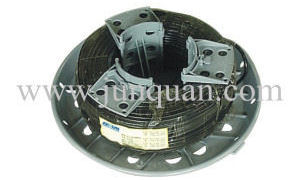

Feeding Plate (PF-2C)
Automatic Wire Feeder (PF-3)

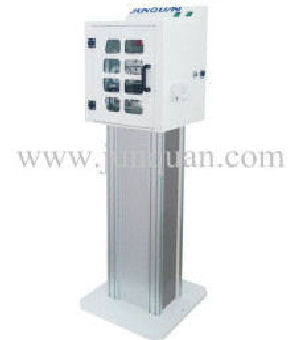

Prefeeding Machine-Belt Type (PF-3A)

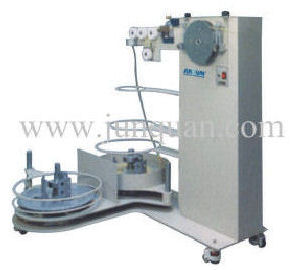

Automatic Wire Feeder (PF-3C)

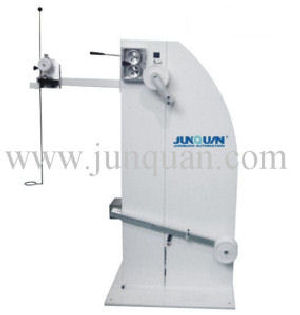

Automatic Wire Feeder (PF-3K)
Automatic Wire Feeder (PF-6K)
Automatic Wire Feeder (PF-6S)

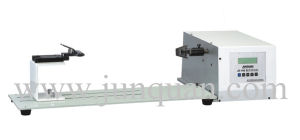

Number Control Twisting Machine (RX-100)
Semi-Stripping Twisting Unit (STM-1)
